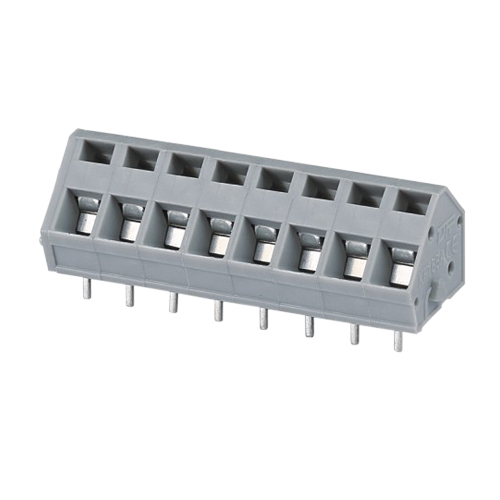

Screwless terminal blocks Push-button 2.5 mm² Pin spacing 5.00/5.08/7.50/7.62/10.00/10.16 mm 8-pole PCB Connector

Model: KF188A-5.0
Down Load: KF188A-5.0-XXP.pdf

Availability:

Quantity:


Inquire Add to Basket

Product Description

Electrical performance
Reference standard	UL	IEC
Rated voltage	300V	450V/750V/1000V
Rated current	15A	17A
Wire diameter	24-14AWG	2.5mm2
Rated impulse voltage	2KV
Mechanical properties
Ambient temperature	-40℃~+105℃
Strip length	5-6mm
Maximum locking torque
Size
Spacing	5.0/5.08/7.5/7.62/10.0/10.16mm
Material and Plating
Plastic parts	PA66，UL94V-0
Welding needle	Brass, Tin plated
Screw
Square box
Contact material
