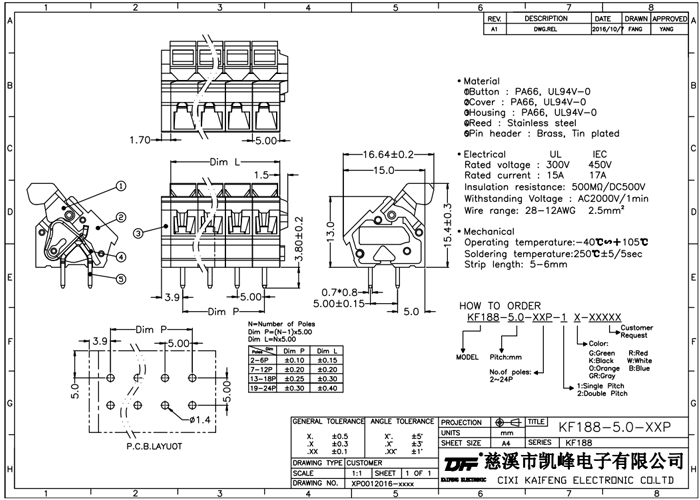

Screwless terminal blocks Push-button 2.5 mm² Pin spacing 5.00/5.08/7.50/7.62/10.00/10.16 mm 7-pole PCB Connector

Share to:
Quantity:

Electrical performance

Reference standard

UL

IEC

Rated voltage

300V

450V/750V/1000V

Rated current

15A

17A

Wire diameter

28-12AWG

2.5mm2

Rated impulse voltage

2KV

Mechanical properties

Ambient temperature-40℃~+105℃

Strip length

5-6mm

Maximum locking torque



Size

Spacing

5.0/5.08/7.5/7.62/10.0/10.16mm

Material and Plating

Plastic parts

PA66,UL94V-0

Welding needle

Brass, Tin plated

Screw


Square box


Contact material


Reed

Stainless steel
