Screwless terminal blocks Push-button 1.5 mm² Pin spacing 10.00 mm 6-pole PCB Connector

Screwless terminal blocks Push-button 1.5 mm² Pin spacing 10.00 mm 6-pole PCB Connector

Screwless terminal blocks Push-button 1.5 mm² Pin spacing 10.00 mm 6-pole PCB Connector

Share to:

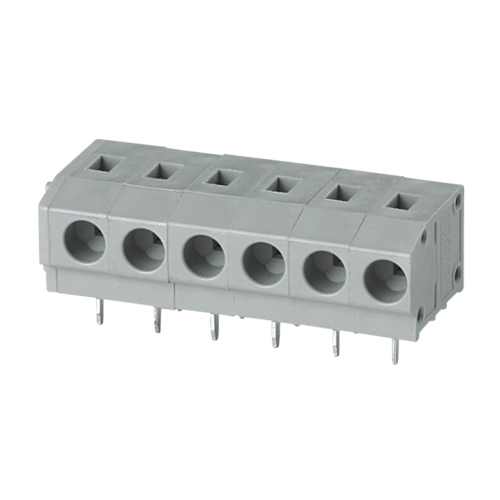

Screwless terminal blocks Push-button 1.5 mm² Pin spacing 10.00 mm 6-pole PCB Connector

Model: KF124A-10.00
Down Load: KF124A-10.0-XXP.pdf

Availability:

Quantity:


Inquire Add to Basket

Product Description

Certification
Electrical performance
Reference standard	UL	IEC
Rated voltage	300V	750V
Rated current	5A	15A
Wire diameter	20-18AWG	1.5mm2
Rated impulse voltage	AC2000V/1min
Mechanical properties
Ambient temperature	-40℃~+105℃
Strip length	9-10mm
Maximum locking torque
Size
Spacing	10.00mm
The number of poles	2-24P
Material and Plating
Plastic parts	PA66，UL94V-0
Welding needle
Screw
Square box
Contact material	Brass,Tin plating
Reed	Stainless steel

Screwless type Terminal block PCB connector
