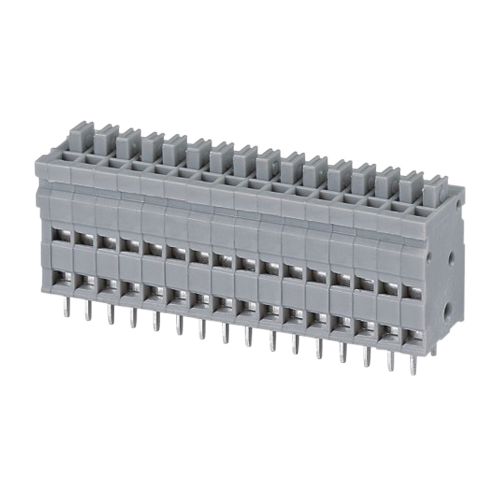

Screwless terminal blocks Push-button 1.0 mm² Pin spacing 2.54 mm 16-pole PCB Connector

Model: KF143V-2.54
Down Load: KF143V-2.54-XXP.pdf

Availability:

Quantity:


Inquire Add to Basket

Product Description

Certification
Electrical performance
Reference standard	UL	IEC
Rated voltage	150V	130V
Rated current	5A	6A
Wire diameter	24-20AWG	1.0mm2
Rated impulse voltage	AC1250V/1min
Mechanical properties
Ambient temperature	-40℃~+105℃
Strip length	11mm
Maximum locking torque
Size
Spacing	2.54mm
The number of poles	2-24P
Material and Plating
Plastic parts	PA66，UL94V-0
Welding needle
Screw
Square box
Contact material	Brass,Tin plating
Reed	Stainless steel

Terminal block Screwless type Screwless terminal blocks
