Pluggable terminal block Plug in Pin spacing 3.50/3.81 mm 4-pole Female connector

Pluggable terminal block Plug in Pin spacing 3.50/3.81 mm 4-pole Female connector

Pluggable terminal block Plug in Pin spacing 3.50/3.81 mm 4-pole Female connector

Pluggable terminal block Plug in Pin spacing 3.50/3.81 mm 4-pole Female connector

Share to:

Pluggable terminal block Plug in Pin spacing 3.50/3.81 mm 4-pole Female connector

Model: KF12EFV-3.50

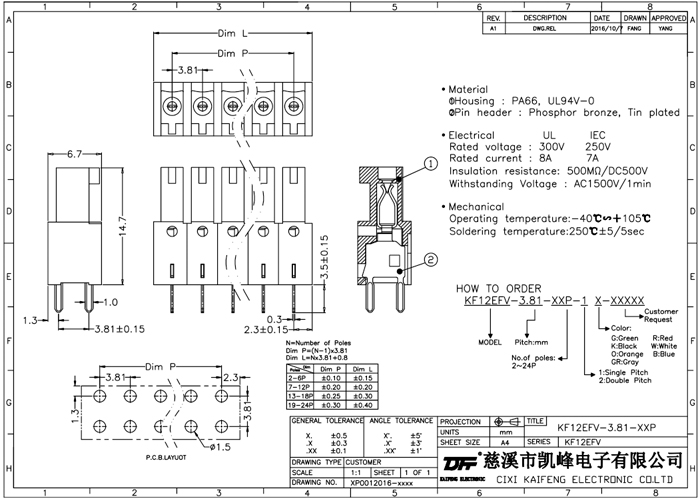

Down Load: KF12EFV-3.50-XXP.pdf

Availability:

Quantity:


Inquire Add to Basket

Product Description

Electrical performance
Reference standard	UL	IEC
Rated voltage	300V	250V
Rated current	8A	7A
Wire diameter
Rated impulse voltage	AC1500V/1min
Mechanical properties
Ambient temperature	-40℃~+105℃
Strip length
Maximum locking torque
Size
Spacing	3.50mm/3.81mm
Material and Plating
Plastic parts	PA66，UL94V-0
Welding needle	Phosphor bronze, Tin Plating
Screw
Square box
Contact material

PCB connector Male and female Plug-in type
