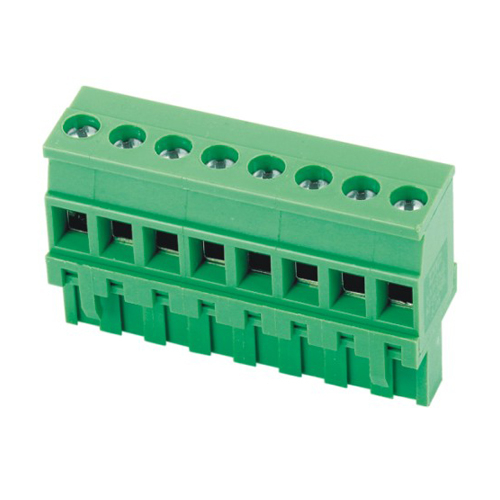

Pluggable terminal block Plug in 2.5mm² Pin spacing 5.0/5.08 mm 8-pole Female connector

Share to:
Quantity:

Electrical performance

Reference standard

UL

IEC

Rated voltage

300V

320V

Rated current

15A

10A

Wire diameter

28-12AWG

2.5mm²

Rated impulse voltage

AC2000V/1min

Mechanical properties

Ambient temperature-40℃~+105℃

Strip length

7-8mm

Maximum locking torque

0.4Nm(3.54Lb-in.)

Size

Spacing

5.00mm/5.08mm

Material and Plating

Plastic parts

PA66,UL94V-0

Welding needle



Screw

M2.5, Steel, Zinc Plating

Square box

Brass, Ni Plating

Contact material

Phosphor bronze, Ni Plating
