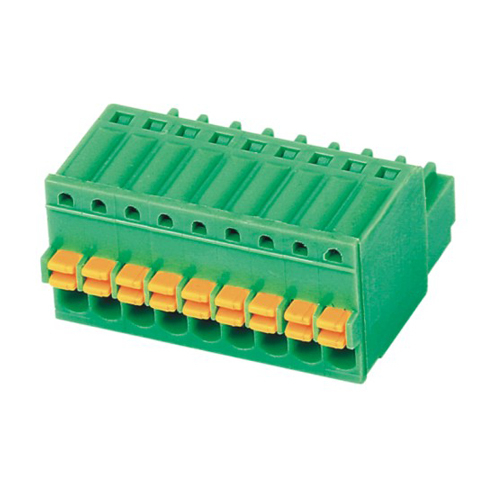

Pluggable terminal block Plug in 0.5mm² Pin spacing 2.50 mm 9-pole Female connector

Share to:
Quantity:

Electrical performance

Reference standard

UL

IEC

Rated voltage

150V

130V

Rated current

5A

10A

Wire diameter

28-20AWG

0.5mm²

Rated impulse voltage

AC1250V/1min

Mechanical properties

Ambient temperature-40℃~+105℃

Strip length

8.0mm

Maximum locking torque



Size

Spacing

2.50mm

Material and Plating

Plastic parts

PA66,UL94V-0

Welding needle


Screw



Square box

Contact material

Phosphor bronze, Ni Plating
