Pluggable terminal block Plug in 0.5-1.5mm² Pin spacing 5.08 mm 8-pole Female connector

Pluggable terminal block Plug in 0.5-1.5mm² Pin spacing 5.08 mm 8-pole Female connector

Pluggable terminal block Plug in 0.5-1.5mm² Pin spacing 5.08 mm 8-pole Female connector

Share to:

Pluggable terminal block Plug in 0.5-1.5mm² Pin spacing 5.08 mm 8-pole Female connector

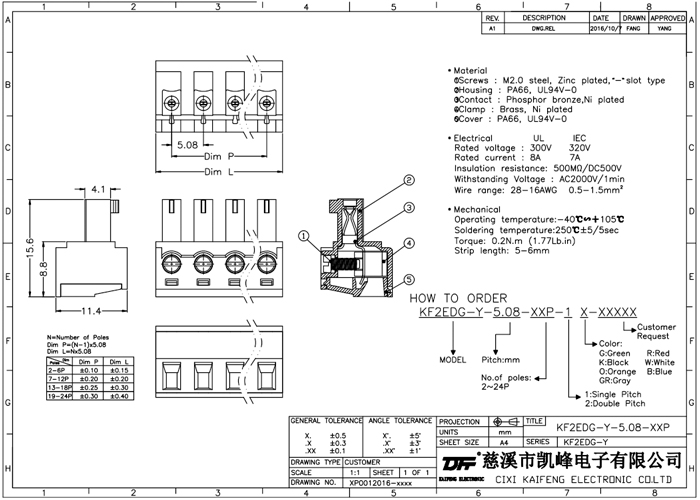

Model: KF2EDG-Y-5.08
Down Load: KF2EDG-Y-5.08-XXP.pdf

Availability:

Quantity:


Inquire Add to Basket

Product Description

Electrical performance
Reference standard	UL	IEC
Rated voltage	300V	320V
Rated current	8A	7A
Wire diameter	28-16AWG	0.5-1.5mm²
Rated impulse voltage	AC2000V/1min
Mechanical properties
Ambient temperature	-40℃~+105℃
Strip length	5-6mm
Maximum locking torque	0.2Nm(1.77Lb-in.)
Size
Spacing	5.08mm
Material and Plating
Plastic parts	PA66，UL94V-0
Welding needle
Screw	M2.0, Steel, Zinc Plating
Square box	Brass, Ni Plating
Contact material	Phosphor bronze, Ni Plating

Plug-in type Male and female PCB connector
