Pluggable terminal block Plug in 0.5-1.5mm² Pin spacing 3.50/3.81 mm 6-pole Female connector

Pluggable terminal block Plug in 0.5-1.5mm² Pin spacing 3.50/3.81 mm 6-pole Female connector

Pluggable terminal block Plug in 0.5-1.5mm² Pin spacing 3.50/3.81 mm 6-pole Female connector

Pluggable terminal block Plug in 0.5-1.5mm² Pin spacing 3.50/3.81 mm 6-pole Female connector

Share to:

Pluggable terminal block Plug in 0.5-1.5mm² Pin spacing 3.50/3.81 mm 6-pole Female connector

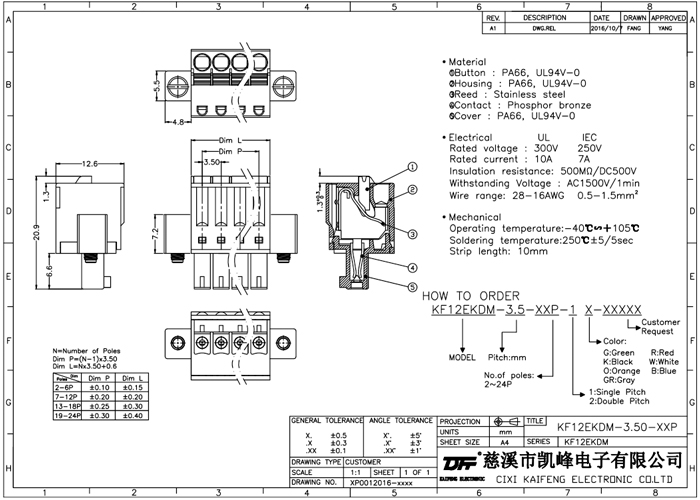

Model: KF12EKDM-3.50
Down Load: KF12EKDM-3.50-XXP.pdf

Availability:

Quantity:


Inquire Add to Basket

Product Description

Electrical performance
Reference standard	UL	IEC
Rated voltage	300V	250V
Rated current	8A	7A
Wire diameter	28-16AWG	0.5-1.5mm²
Rated impulse voltage	AC1500V/1min
Mechanical properties
Ambient temperature	-40℃~+105℃
Strip length	6-7mm
Maximum locking torque	0.2Nm(1.77Lb-in.)
Size
Spacing	3.50mm/3.81mm
Material and Plating
Plastic parts	PA66，UL94V-0
Welding needle
Screw	M2.0, Steel, Zinc Plating
Square box	Brass, Ni Plating
Contact material	Phosphor bronze, Ni Plating

Pluggable terminal blocks Plug-in type Male and female
