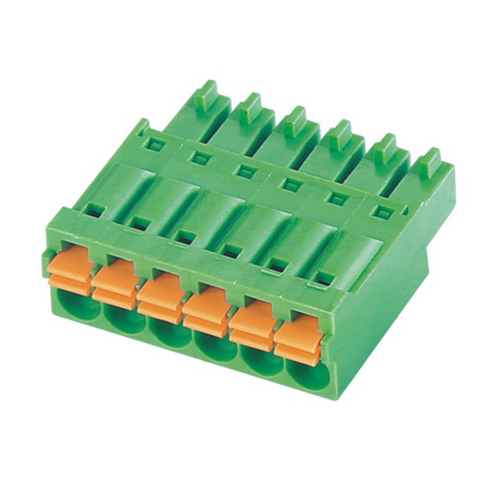

Pluggable terminal block Plug in 0.5-1.5mm² Pin spacing 3.50/3.81 mm 6-pole Female connector

Share to:
Quantity:

Electrical performance

Reference standard

UL

IEC

Rated voltage

300V

250V

Rated current

8A

7A

Wire diameter

28-16AWG

0.5-1.5mm²

Rated impulse voltage

AC1500V/1min

Mechanical properties

Ambient temperature-40℃~+105℃

Strip length

8-9mm

Maximum locking torque



Size

Spacing

3.50mm/3.81mm

Material and Plating

Plastic parts

PA66,UL94V-0

Welding needle


Screw



Square box

Contact material

Phosphor bronze, Ni Plating
