Pluggable terminal block Header Pin spacing 5.0/5.08 mm 6-pole Male connector

Pluggable terminal block Header Pin spacing 5.0/5.08 mm 6-pole Male connector

Pluggable terminal block Header Pin spacing 5.0/5.08 mm 6-pole Male connector

Pluggable terminal block Header Pin spacing 5.0/5.08 mm 6-pole Male connector

Share to:

Pluggable terminal block Header Pin spacing 5.0/5.08 mm 6-pole Male connector

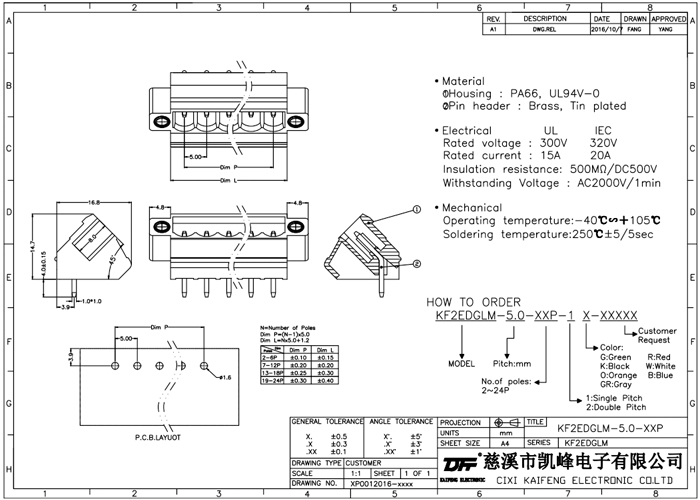

Model: KF2EDGLM-5.0
Down Load: KF2EDGLM-5.0-XXP.pdf

Availability:

Quantity:


Inquire Add to Basket

Product Description

Certification
Electrical performance
Reference standard	UL	IEC
Rated voltage	300V	320V
Rated current	15A	20A
Wire diameter
Rated impulse voltage	AC2000V/1min
Mechanical properties
Ambient temperature	-40℃~+105℃
Strip length
Maximum locking torque
Size
Spacing	5.00mm/5.08mm
The number of poles	2-24P
Material and Plating
Plastic parts	PA66，UL94V-0
Welding needle
Screw
Square box
Contact material	Brass, Tin Plating
Reed

Plug-in type Terminal block Male and female
