Feed Through terminal blocks Strip type 0.5-2.5mm² Pin spacing 10.0mm 5-pole Fuse connector

Feed Through terminal blocks Strip type 0.5-2.5mm² Pin spacing 10.0mm 5-pole Fuse connector

Feed Through terminal blocks Strip type 0.5-2.5mm² Pin spacing 10.0mm 5-pole Fuse connector

Share to:

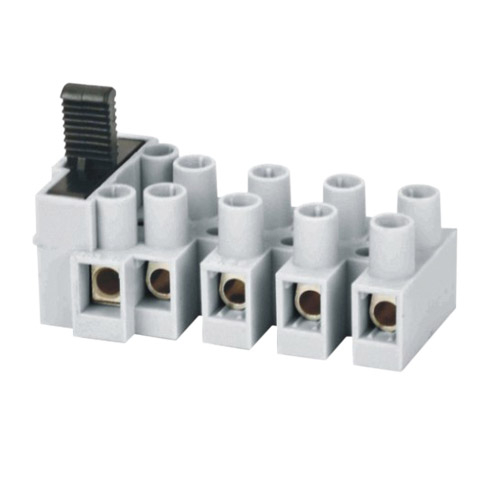

Feed Through terminal blocks Strip type 0.5-2.5mm² Pin spacing 10.0mm 5-pole Fuse connector

Model: KF100-1-10.0
Down Load: KF100-1-10.0-XXP（铜方块）.pdf

Availability:

Quantity:


Inquire Add to Basket

Product Description

Electrical performance
Reference standard	UL	IEC
Rated voltage	300V	450V
Rated current	10A	7.5A
Wire diameter	22-14AWG	0.5-2.5mm2
Rated impulse voltage	2.5KV
Mechanical properties
Ambient temperature	-40℃~+110℃
Strip length	6.0-7.0mm
Maximum locking torque	0.5Nm(4.43Lb-in)
Size
Spacing	10mm(.394")
Material and Plating
Plastic parts	PA66，UL94V-0
Welding needle
Screw	M3.0 Steel, Zinc Plated
Square box	Brass, Ni plated
Contact material
Reed

Terminal block Feed through terminal blocks Strip type
