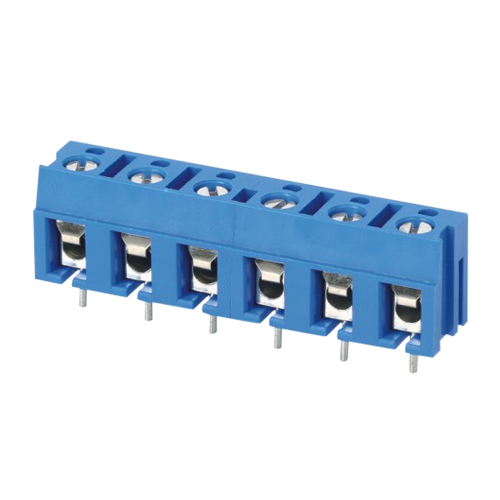

Euro terminal blocks Spring type 2.5mm² Pin spacing 7.50mm 6-pole; PCB connector

Reference standard

UL

Rated voltage

300V

450V

Rated current

12A

Wire diameter

22-14AWG

2.5mm²

Rated impulse voltage

2.5KV

Mechanical properties

Strip length

4.5-5mm

Maximum locking torque

0.5Nm(4.3lb-in)

Size

Spacing

7.5mm(.295")

Material and Plating

Plastic parts

PA66，UL94V-0

Welding needle

Screw

M3.0, Steel, Zinc Plating

Square box

Brass,Tin plating

Contact material

Reed

Phosphor bronze, Ni plated or stainless steel
