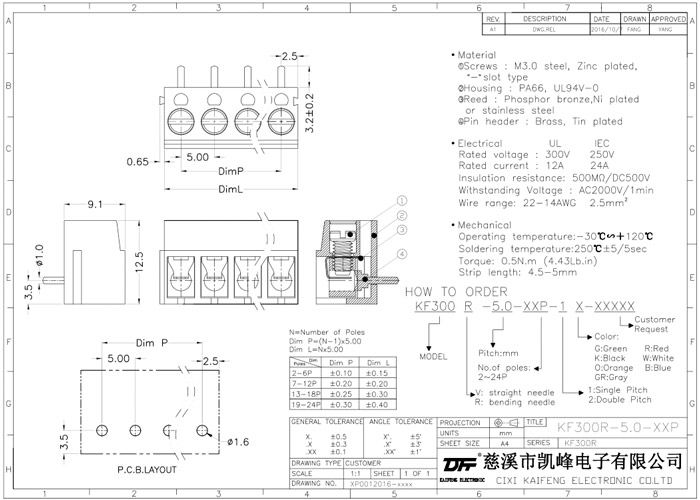

Euro terminal blocks Spring type 2.5mm² Pin spacing 5.00 mm 8-pole PCB connector

Electrical performance
Reference standard	UL	IEC
Rated voltage	300V	250V
Rated current	12A	24A
Wire diameter	22-14AWG	2.5mm2
Rated impulse voltage	2.0KV
Mechanical properties
Ambient temperature	-30℃~+120℃
Strip length	4.5-5mm
Maximum locking torque	0.5Nm(4.4lb-in)
Size
Spacing	5.0mm(.197")
Material and Plating
Plastic parts	PA66，UL94V-0
Welding needle
Screw	M3.0, Steel, Zinc Plating
Square box	Brass,Tin plating
Contact material
Reed	Phosphor bronze, Ni plated or stainless steel
