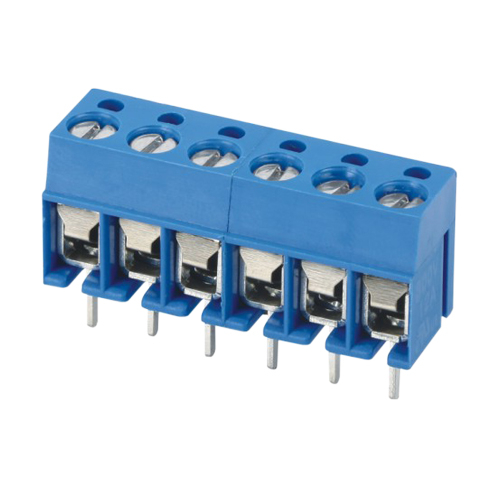

Euro terminal blocks Spring type 2.5mm² Pin spacing 5.00 mm 6-pole PCB connector

Reference standard

UL

Rated voltage

300V

250V

Rated current

12A

Wire diameter

22-14AWG

Rated impulse voltage

2.0KV

Mechanical properties

Strip length

4.5-5mm

Maximum locking torque

0.4Nm(3.5lb-in)

Size

Spacing

5.0mm(.197")

Material and Plating

Plastic parts

PA66，UL94V-0

Welding needle

Screw

M2.5, Steel, Zinc Plating

Square box

Brass,Tin plating

Contact material

Reed

Phosphor bronze, Ni plated or stainless steel
