Euro terminal blocks Rising/Lift type 4.0mm² Pin spacing 5.00/5.08mm 6-pole PCB connector

Euro terminal blocks Rising/Lift type 4.0mm² Pin spacing 5.00/5.08mm 6-pole PCB connector

Euro terminal blocks Rising/Lift type 4.0mm² Pin spacing 5.00/5.08mm 6-pole PCB connector

Euro terminal blocks Rising/Lift type 4.0mm² Pin spacing 5.00/5.08mm 6-pole PCB connector

Share to:

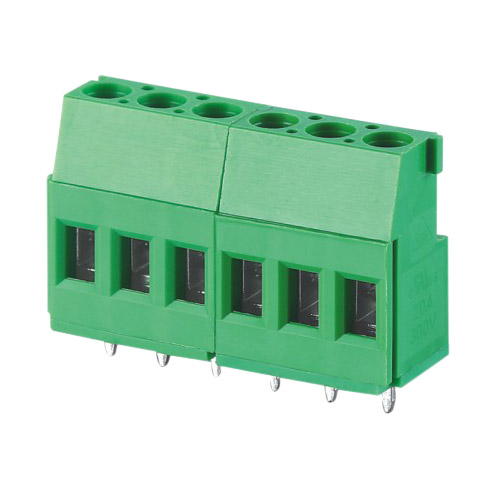

Euro terminal blocks Rising/Lift type 4.0mm² Pin spacing 5.00/5.08mm 6-pole PCB connector

Model: KF129C-5.0
Down Load: KF129C-5.0-XXP.pdf

Availability:

Quantity:


Inquire Add to Basket

Product Description

Electrical performance
Reference standard	UL	IEC
Rated voltage	300V	250V
Rated current	20A	20A
Wire diameter	24-12AWG	2.5mm2
Rated impulse voltage	2KV
Mechanical properties
Ambient temperature	-40℃~+105℃
Strip length	6-7mm
Maximum locking torque	0.5Nm(4.43lb-in)
Size
Spacing	5.0/5.08mm(.197"/.2")
Material and Plating
Plastic parts	PA66，UL94V-0
Welding needle	Brass，Tin plated
Screw	M3.0,Steel, Zinc Plated
Square box	Brass,Ni plated
Contact material
Reed

Rising clamp type Terminal block Pcb Spring type
