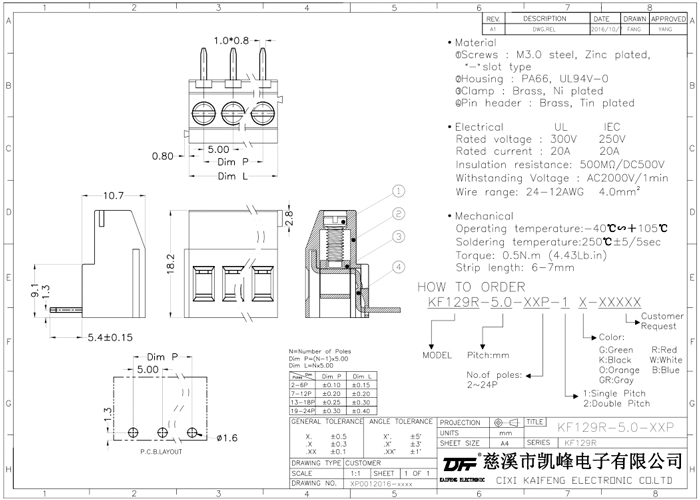

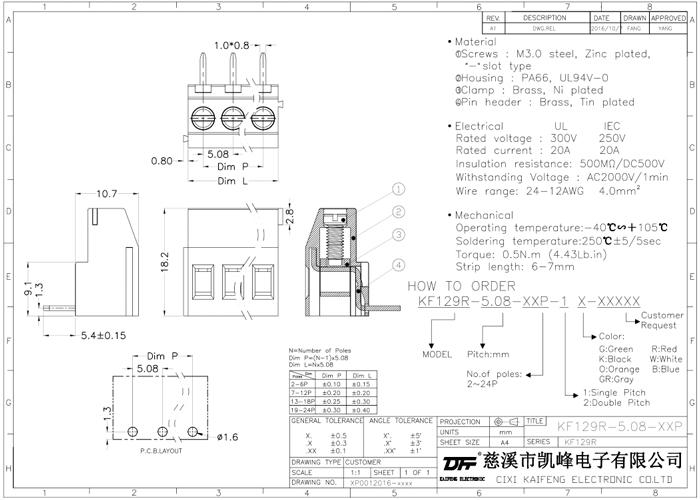

Euro terminal blocks Rising/Lift type 4.0mm² Pin spacing 5.00/5.08mm 6-pole PCB connector

Share to:
Quantity:

Electrical performance

Reference standard

UL

IEC

Rated voltage

300V

250V

Rated current

20A

20A

Wire diameter

24-12AWG

4.0mm2

Rated impulse voltage

2KV

Mechanical properties

Ambient temperature-40℃~+105℃

Strip length

6-7mm

Maximum locking torque

0.5Nm(4.43lb-in)

Size

Spacing

5.0/5.08mm(.197"/.2")

Material and Plating

Plastic parts

PA66,UL94V-0

Welding needle

Brass,Tin plated

Screw

M3.0,Steel, Zinc Plated

Square box

Brass,Ni plated

Contact material



Reed
