Euro terminal blocks Rising/Lift type 2.5mm² Pin spacing 5.00/5.08 mm 2*6-pole PCB connector

Euro terminal blocks Rising/Lift type 2.5mm² Pin spacing 5.00/5.08 mm 2*6-pole PCB connector

Euro terminal blocks Rising/Lift type 2.5mm² Pin spacing 5.00/5.08 mm 2*6-pole PCB connector

Euro terminal blocks Rising/Lift type 2.5mm² Pin spacing 5.00/5.08 mm 2*6-pole PCB connector

Share to:

Euro terminal blocks Rising/Lift type 2.5mm² Pin spacing 5.00/5.08 mm 2*6-pole PCB connector

Model: KF128DGA-5.0

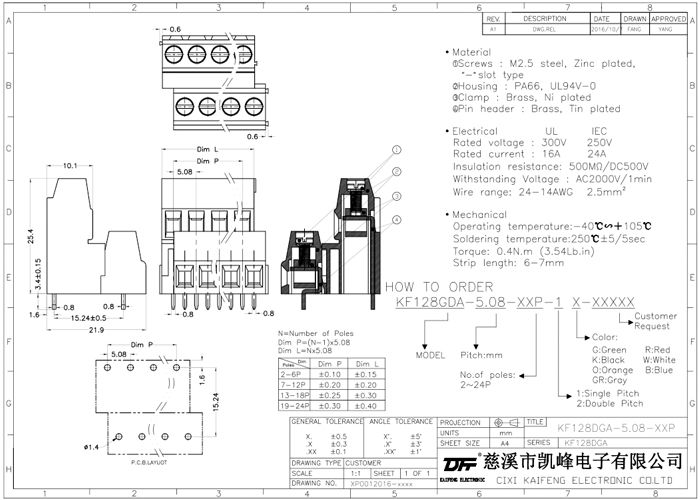

Down Load: KF128DGA-5.0-XXP.pdf

Availability:

Quantity:


Inquire Add to Basket

Product Description

Electrical performance
Reference standard	UL	IEC
Rated voltage	300V	250V
Rated current	16A	24A
Wire diameter	24-14AWG	2.5mm2
Rated impulse voltage	2.0KV
Mechanical properties
Ambient temperature	-40℃~+105℃
Strip length	6-7mm
Maximum locking torque	0.5Nm(4.43lb-in)
Size
Spacing	5.00/5.08mm(.197"/.2")
Material and Plating
Spacing	PA66，UL94V-0
Welding needle	Brass，Tin plated
Screw	M2.5，Steel，Zinc Plated

PCB connector Rising clamp type Terminal block
