Euro terminal blocks Rising/Lift type 16.0mm² Pin spacing 10.16mm 5-pole PCB connector

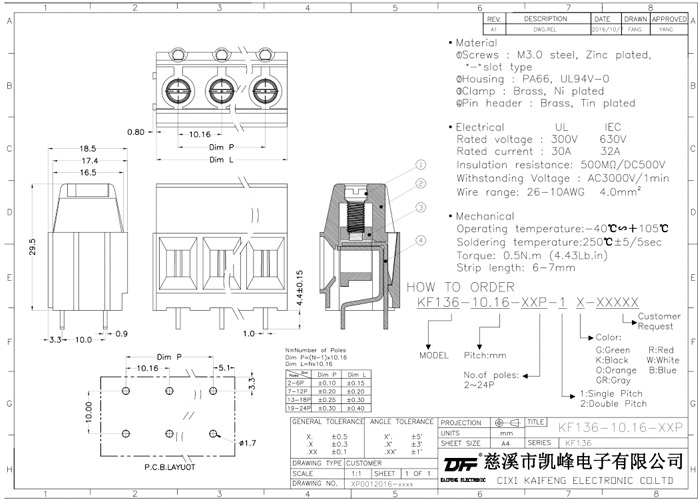

Model: KF136-10.16
Down Load: KF136-10.16-XXP(ENG).pdf

Availability:

Quantity:


Inquire Add to Basket

Product Description

Electrical performance
Reference standard	UL	IEC
Rated voltage	600V	1000V
Rated current	65A	65A
Wire diameter	20-6AWG	16.0mm2
Rated impulse voltage	AC3000V/1min
Mechanical properties
Ambient temperature	-40℃~+105℃
Strip length	10mm
Maximum locking torque	1.2Nm(10.5lb-in)
Size
Spacing	10.16mm
Material and Plating
Plastic parts	PA66，UL94V-0
Welding needle	Brass，Tin plated
Screw	M4.0，Steel，Zinc Plating
Square box	Brass，Ni Plating

PCB connector Terminal block Rising clamp type
