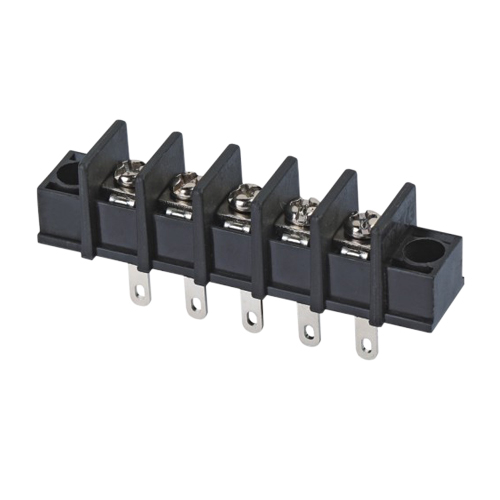

Barrier terminal blocks Screw type 4.0mm² Pin spacing 9.50 mm 5-pole PCB connector

Model: KF-45H-9.5
Down Load: KF-45H-9.5-XXP.pdf

Availability:

Quantity:


Inquire Add to Basket

Product Description

Electrical performance
Reference standard	UL	IEC
Rated voltage	300V	750V
Rated current	25A	32A
Wire diameter	22-12AWG	4.0mm2
Rated impulse voltage	2KV
Mechanical properties
Ambient temperature	-40℃~+105℃
Strip length
Maximum locking torque
Size
Spacing	9.50mm
Material and Plating
Plastic parts	PA66，UL94V-0
Welding needle	Brass,Tin plating
Screw	M4.0, Steel, Ni plated
Square box
Contact material
Reed

American/Japanese type PCB screw connector Barrier type
